Fanless Embedded Computer Intel Core I3/I5/I7 256GB Dual Ethernet COM Parallel Port 2x DDR4 SO-DIMM Factory Automation

Name: Fanless Embedded Computer Intel Core I3I5I7 256GB Dual Ethernet COM Parallel Port 2x DDR4 SODIMM Factory Automation
Brand: huiyuan
Price: 398 USD

Quality Fanless Embedded Computer Intel Core I3/I5/I7 256GB Dual Ethernet COM Parallel Port 2x DDR4 SO-DIMM Factory Automation for sale

type : Embedded Computer

Brand Name : huiyuan

Place of Origin : Guangdong, China

products status : Stock

CPU : I3 I5 I7

Product name : Industrial Embedded Pc

I/O Ports : VGA/HD-MI/LAN/USB/RS232

Operating System : Win8 Standard ( Win10 /Win11/ Linux)

USB : 4*USB3.0 / 2.0

Interface : VGA/HDM1/USB/RJ45/COM/Audio

Power supply : DC 12V/19V

Warranty : 1 Year

Memory : 4G / 8G / 16G / 32G / 64G (optional)

Hard Drive Capacity : 64GB / 128GB / 256GB / 528G / 1T (optional)

MOQ : 1 unit

Price : $398-440 / unit

Contact Now

Recommend Products

Products Description

Fanless Embedded Computer Intel Core I3/I5/I7 256GB Dual Ethernet COM Parallel Port 2x DDR4 SO-DIMM Factory Automation

BP06A0-6C1L

Supports 6 RS232 connection ports (RS485 optional), 8USB port configuration, optional dual network ports (USB ports will be changed to 6), Windows 8/10/11, Linux operating system, Intel 6\7\8\9th Intel Core processor

Product Paramenters

STANDARD PARAMETER	cpu	Intel 6\7\8\9th Intel Core
		internal storage	2 * SO-DIMM DDR4 2400/2666/3200MHz memory
		storage	1 * M.2 2280 Interface support NVME and SATA Dual protocol (adaptive) 1 * 2.5" SATA HDD/
		graphics card	INTEL integrated graphics（It depends on the CPU model）
		display output	HDMI/VGA(Optional DP) ransactional concurrent/Asynchronous dual display
		network	LAN REALTEK 8111H Gigabit Ethernet (Optional double network LAN2 Intel i219) WIFI 1*M.2 2230 for Wifi+B

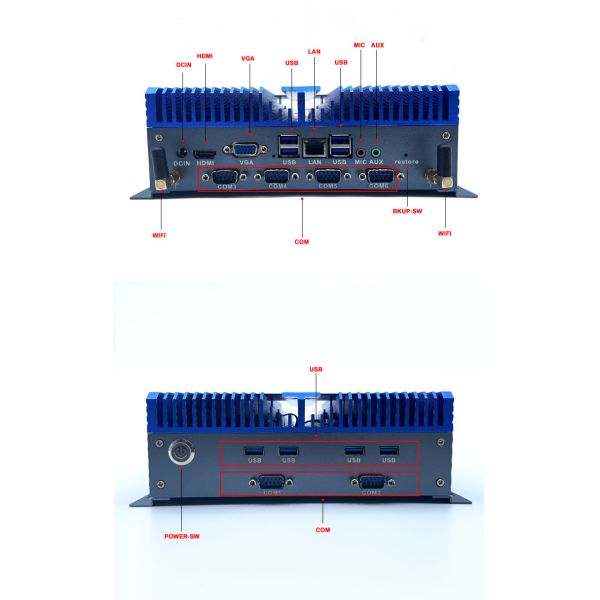

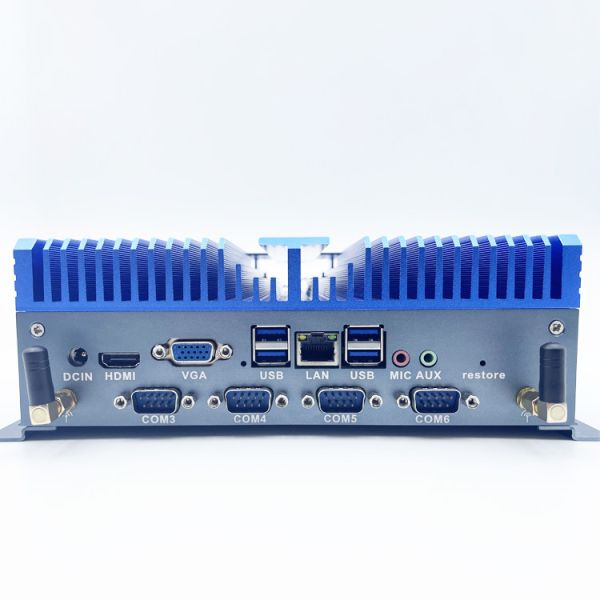

I/O PORT	REAR OUT	1DCIN 1HDMI 1VGA(Optional DP) 4USB3.0 1* LAN(You can select dual network ports, two less USB3.0) 1Line out+mic 1CLR_CMOS 1BKUP_SW(one-key reset) 4COM(Optional 485)
I/O PORT		FRONT OUT	1POWER 4USB2.0 2*COM(Optional 485)
power supply	power input	12V7.5A/19V4.74A
size	size dimension	bare computer: 21020078 With mounting foot size：24020078mm
t&h temperature and humidity	operating temperature	0°C~ 45°C
		storage temperature	-40°C~ 80°C
		operating humidity	10% - 95% @40°C non-condensing
system	Support operating system	Windows 8/10/11, Linux

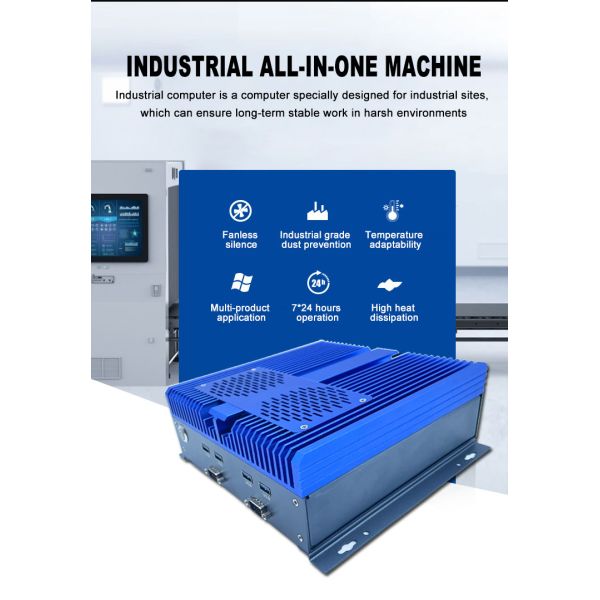

_{Strong environmental adaptability}

Due to the harsh environment of the industrial site, the industrial computer is required to have a strong ability to adapt to the environment, such as high requirements for temperature/humidity variation range; With dustproof, anti-corrosion, anti-shock dynamic impact ability; It has good electromagnetic compatibility and high anti-interference ability

Say goodbye to dust operating temperature 0°C~ 45°C 365*24 hours long time operation

10% - 95% @40°Cnon-condensing High anti-jamming capability Shock-proof dynamic impact capability

Details Images

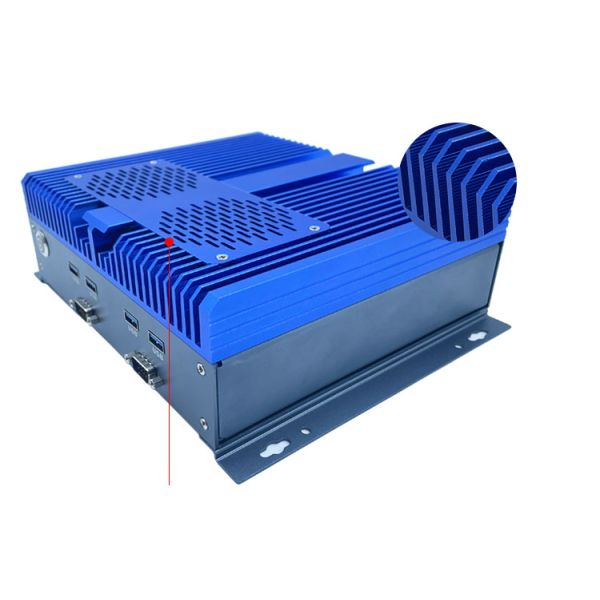

^{Compatible with fanless and external fan switching}

The surface of the industrial computer adopts the strip grid shape, closed one molding, the whole machine has no heat dissipation hole design, which can ensure the external air circulation, improve the heat dissipation efficiency, the back fan compatible design, adding the fan strong heat dissipation, no fan, no noise, quiet use more comfortable.

No fan, compatible with external fan

^{Multitask display}

It can be used together with external VGA and HDMI at the same time (extended or copied display can be selected by customers) to achieve multi-task display platform

^{Application industries and fields}

scenario one.

Industrial field control, food processing, production line machinery and equipment control, CNC machine tool industrial automation, instrument panel, etc.

Scenario two.

Cinema, bar, golf course, KTV, beauty salon, club, resort, sauna leisure center, etc.

Scenario three.

Shopping malls, supermarkets, Western restaurants, fast food restaurants, hotels, gourmet restaurants, chain stores, specialty stores, shopping centers, etc.

Scenario four.

Commercial banks, ATMs, self-service inquiry machines, insurance companies, fund companies, securities companies, etc.

Scenario Six.

Building advertising machine, information inquiry machine, intelligent transportation, information release system, monitoring system, etc.

Scenario seven.

Medical equipment, patient monitoring system, registration machine, medical imaging, medical inquiry machine, etc.

Scenario eight.

Exhibition hall, bookstore, museum, gymnasium, conference center, talent market, park, school, mail, etc.

Product packaging

FAQ

1.Q: What's the Minimum Order Quantity(MOQ)? A: Just 1 piece is OK. 2.Q: Are you a factory or a trading company? A: We are one of the professional computer manufacturers located in guangzhou, China. 3.Q: How about after-sales service? A: Two years warranty except man-made damage. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service. 4.Q: Can you provide DIY/OEM/ODM service? A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification. 5.Q: Can I have my logo printed on the computers? A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity. 6.Q: What’s your OEM Service for my bulk order? A: 1). Put your brand on the device housing by laser printing 2). Put your own label below the device housing; 3). Supply Warranty Card in the package for free; 4). Make the booting interface with your company logo or brand for free. 7.Q: What Operating System is installed before delivery? A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed. 8.Q: How long is the lead time? A: General speaking, 1-3 days for samples, 7 working days for bulk order. 9.Q: What's your payment term?

A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.

10.Q: Can you arrange the shipment? Since it's my first time to buy from China.

A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
