10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction

Product Categories
Huiyuan Intelligent Technology (guangzhou) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction

Memory : 2G/4G/8G/16G DDR3

MOQ : 1 unit

Interface : USB/RS232/VGA/DVI

Place of Origin : Guangdong, China

Touch points : 10 Point Capacitive Touch

type : Industrial Computer Accessories

Size : 10.4"/12.1"/13.3"/15"/15.6"/17"/18.5"/19"/21.5"

Brand Name : huiyuan

Application : ATM.POS.Open Frame Machine ...etc

products status : Stock

CPU : J1900/J6412 /4/6/7/8/10th /i3/i5/i7

Operating System : Win7/8/10/linux/android

Product name : industrial control host

Storage : 32G/64G/128G/256G SSD

Resolution : 1920*1080

Price : $141-399 / unit

Contact Now

Recommend Products
Products Description
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
TY-X02
X02 industrial personal computer, equipped with LED LCD screen, with anti-light interference, sunlight, incandescent lamp, fluorescent lamp and other strong light changes when normal use, 10 point standard projection capacitive touch screen, high sensitivity, fast response, can achieve multi-touch functions such as zoomin and zoom out pictures, There are a variety of styles to choose from, external embedded fully fit model, internal embedded fully fit model, bracket desktop model, wall hanging model
Product Paramenters




STANDARD PARAMETER
SOC
J4125 (Optional: Intel J1900 Intel J6412, industrial control board i3, i5，i7，Android rk3288,rk3399,rk3568,rk3588)
storage
1 * M.2 2280 Interface support NVME and SATA Dual protocol (adaptive) 1 * 2.5" SATA HDD/
graphics card
Core graphics card (independent graphics card can be customized)
network
Integrated 10/100/1000M adaptive network card, wireless network card 802.11a/b/g/n

I/O PORT
FRONT OUT
2*RS232/485
REAR OUT
2*HDMI 4*USB 2*LAN 1*MIC IN 1*LINE OUT
power supply
power input
12V5A
size
size dimension
bare computer: 257.4*176.4*45.5 With mounting foot size：350*235*120mm


t&h temperature and humidity
operating temperature
-10°C~ 60°C
storage temperature
0°C~ 60°C
operating humidity
0%-90%
system
Support operating system
Win7/Win10/Win11/Linux/Android
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
Details Images
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction

Appearance display

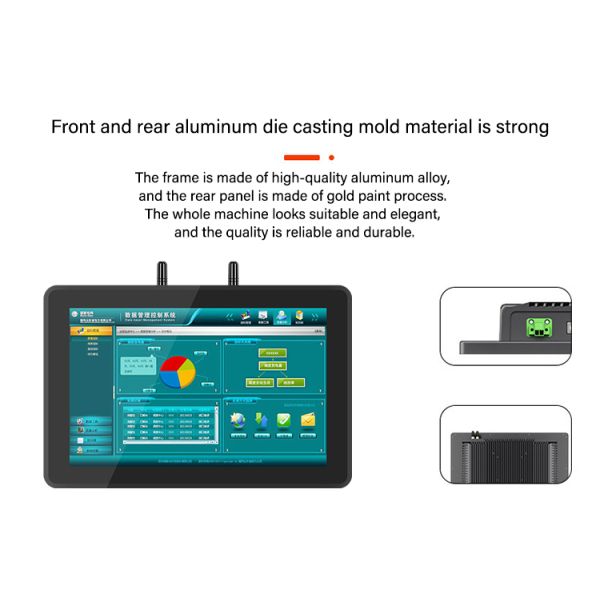

Silver appearance, simple and generous, all aluminum alloy material manufacturing,
simple and convenient work application
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
The back adopts fully enclosed strip heat sink design, durable work, adapt to a variety of environments, strong performance
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
Product packaging
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
Company Profile
10.1 Inch Capacitive Touch Integrated Machine for Intelligent Workshop Production Line MES System Human-computer Interaction
Huiyuan Intelligent Guangzhou Technology Co., Ltd. is a high-tech enterprise focusing on the research and development and manufacturing of a series of products such as touch all-in-one computer, tablet computer, embedded industrial all-in-one computer, industrial computer, OPS computer, etc. It is committed to product innovation. Widely used in industry 4.0, CNC machine tools, intelligent medical, security monitoring, commercial terminal equipment and other fields
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)? A: Just 1 piece is OK. 2.Q: Are you a factory or a trading company? A: We are one of the professional computer manufacturers located in guangzhou, China. 3.Q: How about after-sales service? A: Two years warranty except man-made damage. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service. 4.Q: Can you provide DIY/OEM/ODM service? A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification. 5.Q: Can I have my logo printed on the computers? A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity. 6.Q: What’s your OEM Service for my bulk order? A: 1). Put your brand on the device housing by laser printing 2). Put your own label below the device housing; 3). Supply Warranty Card in the package for free; 4). Make the booting interface with your company logo or brand for free. 7.Q: What Operating System is installed before delivery? A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed. 8.Q: How long is the lead time? A: General speaking, 1-3 days for samples, 7 working days for bulk order. 9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.

10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
